Photos - Metropolitan Electric Locomotives

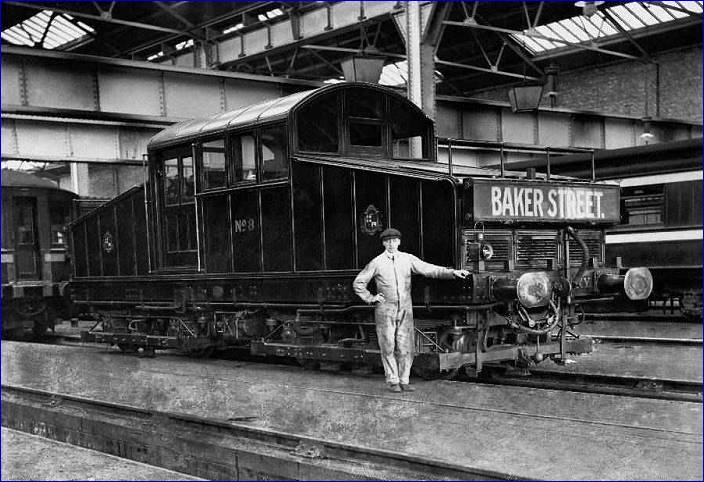

Fig. 1:  British Westinghouse Locomotive 1906

Metropolitan Railway electric locomotive photographed in about 1906 inside Neasden shed.  This is No 8, which was one of the ten ordered from British Westinghouse in October 1904 and delivered in 1905.  The locos weighed 50 tons and had four 200 hp motors.  This example is in original condition except for the modified shoegear.  The bodies and bogies were built by Metropolitan Amalgamated in Birmingham and the electrical equipment was supplied by BW.   These locomotives lasted until 1922, when they were replaced by new locomotives built by Vickers.  This photo was kindly supplied by "teckytony".

To the Top of this Page

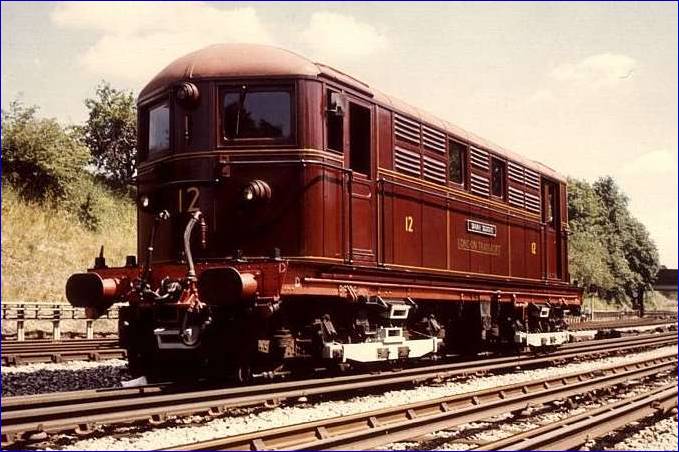

Fig 2:   Metropolitan Vickers Locomotive 1922

Metropolitan-Vickers built electric locomotive on the test track at South Ealing in the 1980s.  This is No 12, Sarah Siddons which is the preserved example of a batch of 20 built in 1922 to replace the earlier locomotives.  This is perhaps the most beautiful non-steam machine possessed by any railway in the UK.  Photo by the late Bob Greenaway.

To the Top of this Page  or to the Home Page                                                                     This page upgraded 16 August 2002
